If you are responsible for smartphone, tablet or wearable device assembly, you probably spend more time than you’d like dealing with “small problems” that cause big headaches:
- Bubbles and glue overflow around the display
- Foam gaskets that shift during assembly
- Battery adhesive that is too strong or too weak
- Die-cut parts that don’t match your drawing tolerance in mass production
From our side as a 3C precision die-cut parts manufacturer, we see these issues every day. The good news is: with the right material stack-up and die-cut design, many of these problems can be solved before they ever reach your production line.

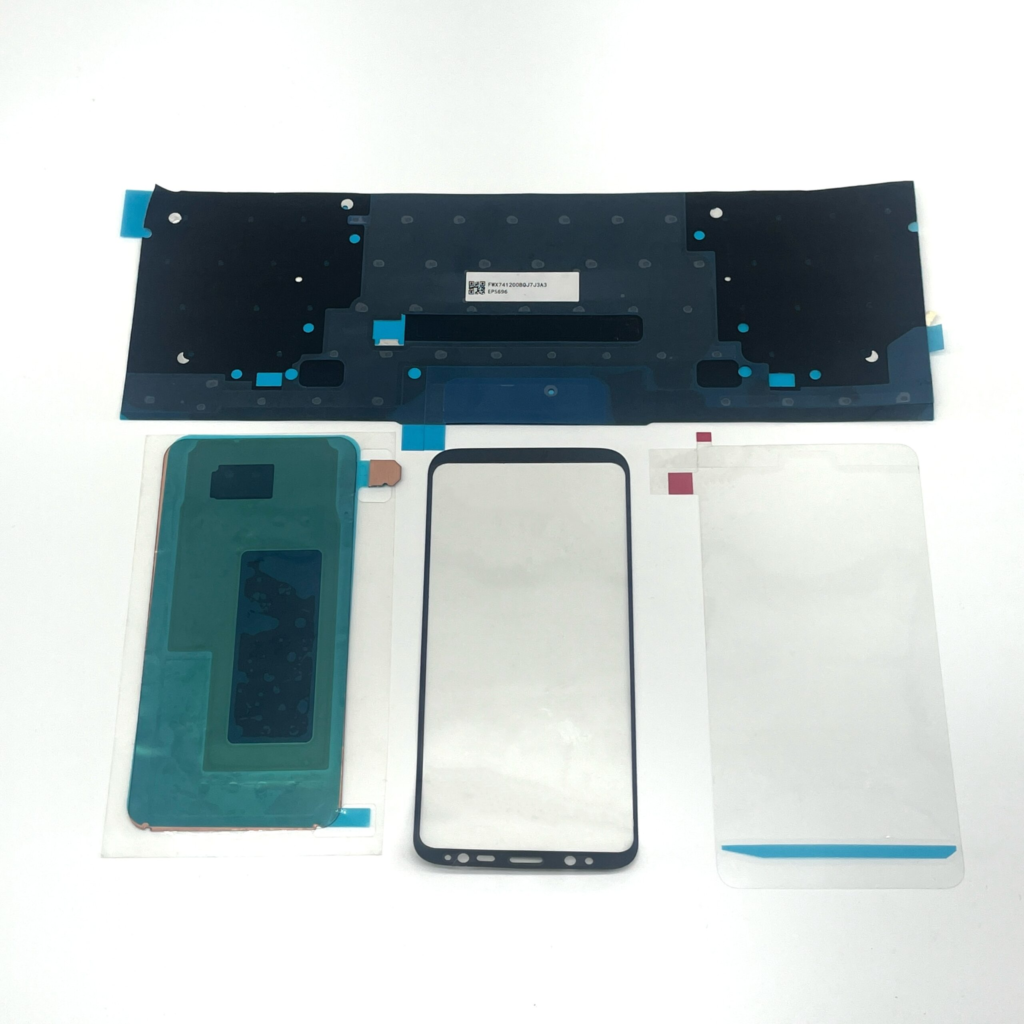

In this article, I’ll share how we work with 3C customers to improve yield and reduce assembly risk using custom precision die-cut parts made from double-sided tape, PET/PP/PE films, foam and other functional materials.
1. Where Your Line Really Suffers – Typical 3C Assembly Pain Points
When a new phone or electronic device moves from NPI to mass production, the same issues appear again and again:
- Display lamination defects
- Bubbles at the edge
- Glue overflow onto the visible area
- Difficult rework because of wrong adhesive choice
- Internal component fixation issues
- FPC, sensors, speakers or camera modules move during drop tests
- Gaps are not filled well, causing rattle and customer complaints
- Inconsistent quality between batches
- First build is fine, but after a few thousand sets, dimensions drift
- Different lots of foam or tape behave differently under temperature and humidity
- Assembly efficiency
- Workers need to align several small pieces manually
- Protective films are hard to peel, slowing down your line
Most of these problems are directly related to die-cut parts design and material selection. That’s exactly where a good 3C die-cut supplier should help you, not just “cut whatever you draw”.
2. How Custom Die-Cut Parts Help You Control Yield
Instead of treating die-cut parts as a “standard consumable”, we usually treat each new design as a small engineering project.
2.1 Matching Materials to Function – Not Just “Any Double-Sided Tape”
Different positions in your device have very different requirements. Here is a simple way we usually communicate with customers:
| Device Position / Function | Typical Material Stack-Up* | Key Targets |
|---|---|---|
| Display edge cushioning & gap filling | Foam + double-sided tape | Shock absorption, no light leakage, stable |
| Battery pack fixation | High-adhesion double-sided tape on PET / PI carrier | Strong holding force, high-temp resistance |
| FPC / small PCB fixation | Medium-adhesion removable tape | Reworkable, clean removal, no residue |
| EMI shielding around chips or connectors | Conductive foam + copper/aluminum foil | Stable contact, low resistance, anti-oxidant |
*We use a mix of double-sided tapes, film and foam materials according to your spec and working environment.
When you share your drawing and working conditions with us (temperature, humidity, test requirements), we will normally propose 1–2 material options, so you can balance performance vs cost rather than guessing.
2.2 Designing for Stable Die-Cutting, Not Just “Can Be Cut”
A drawing that looks perfect in CAD is not always friendly to die-cutting and mass production. Some common design risks we help customers fix:
- Too narrow bridges and frames → parts deform or break during peeling
- No tolerance considered for foam compression → actual gap differs from design
- Peeling direction not considered → operators damage the part during assembly
Typical optimizations we suggest:
| Risk in Original Design | Optimization We Propose | Benefit to You |
|---|---|---|
| Very thin frame around opening | Increase frame width / change opening shape | Less deformation, more stable assembly |
| Many tiny pieces to position manually | Integrate pieces into one multi-functional part | Faster assembly, fewer mis-alignment issues |
| No clear peel-off tab or direction | Add tab and define peel direction on drawing | Smoother operation, less damage & rework |
You still fully control the final design decision, but we make sure you clearly see the trade-offs between design, manufacturability and yield.
3. Real Results: What Our 3C Customers Usually Achieve
By adjusting both materials and die-cut structure, our customers typically achieve:
- Yield improvement in display or module assembly by 3–10%
- 15–20% cycle time reduction on certain manual steps
- Lower total cost, even if material unit price is slightly higher, because rework and scrap go down
- More stable mass-production performance, especially under high temperature / high humidity tests
This is why we position our 3C precision die-cut parts not as a “cheap sticker”, but as a small engineering lever that can quietly improve your entire line.
4. What We Need from You to Give a Fast & Accurate Proposal
If you want us to evaluate your current design or support a new project, the more complete your information is, the faster and more accurate our suggestion will be.
Here is a simple checklist you can follow:
4.1 Technical information
- 2D drawing (PDF / DXF) with critical dimensions and tolerances
- If available: 3D file or assembly sketch showing where the part sits
- Function of each area (cushioning, fixing, EMI, sealing, insulation)
- Working conditions: temperature range, humidity, chemical exposure
- Reliability tests to pass: high-temp / high-humidity, drop tests, peel strength, etc.
4.2 Business information
- Estimated annual volume and ramp-up plan
- Whether you have assigned brands of tape / film, or you are open to our suggestion
- Target cost range (even a rough range is useful)
- Expected schedule: sample time, pilot run, mass production
You can send this information directly to us by email at info@charmetack.com, or include it in your message through our contact form. Once our engineering team reviews your data, we will normally come back with:
- Material recommendation and structure proposal
- Estimated tooling cost and unit price range
- Sample lead time and mass production lead time
5. How We Support Your Project from NPI to Mass Production
For 3C projects, we don’t just ship parts and disappear. Our typical support model includes:
- Early-stage DFM feedback on your drawings
- Quick prototyping using laser cutting or trial tooling for small batches
- Pilot run support, adjusting parameters as your process stabilizes
- Mass production with process control, including incoming material control, in-process inspection and outgoing quality checks
- Flexible packaging and labeling to match your assembly flow (rolls, sheets, stacked parts, clean-room packaging when needed)
This way, whether you are building a brand-new flagship model or a cost-optimized version for emerging markets, your die-cut parts will not be the bottleneck.
6. Ready to Fix Your Die-Cut Problems?
If you are constantly fighting bubbles, glue overflow, unstable gaskets or inconsistent die-cut quality, it might be time to look at your die-cut design and materials more seriously.
We specialize in 3C precision die-cut parts for:
- Smartphones and tablets
- Smart wearables and TWS devices
- Small household appliances and consumer electronics
- Medical electrodes and other precision electronics
Share your drawings and project background with us, and we will help you review your current design, propose material options and give a realistic quotation.
👉 Send your inquiry to: info@charmetack.com
Tell us briefly what device you are working on and what problem you want to solve. We are happy to start with a small trial build and grow together with your project.
